Detail produk:
|
| Product Name: | Overhead Line Stringing Equipment | Max continuous tension: | 2x50/1x100kN |
|---|---|---|---|
| Speed at max pull: | 2.5km/h | Max speed: | 5km/h |
| Max reverse pulling force: | 2x45/1x90kN | Diesel: | 77kw(103hp) |
| Bull-wheel diameter: | 1300/1500mm | Max conductor diameter: | 40mm |
| Key Words: | Conductor Stringing Equipment .Tensioner Stringing Equipment ,Cable Stringing Equipment | Application: | Transmission Overhead Bundle Conductor |
| Total Weight: | 4500kg | Insulation Material: | Porcelain |
| Insulation Type: | Suspension | Weight: | 6000kg |
| Drum Diameter: | 540mm | Electric System: | 24v |
| Max Continuous Pull: | 30KN | Type: | Hydraulic Tensioner |
| Product Type: | Electrical Equipment | Max Intermittent Tension: | 2x70/1x140KN |
| Max Rope Diameter: | 27mm | Slot Number: | 2×5 |
| Engine: | Diesel | Weather Resistance: | Outdoor |
| Useage: | Match With Hydraulic Tensioner Machine | ||
| Menyoroti: | peralatan saluran transmisi diesel,peralatan saluran transmisi merangkai overhead,peralatan merangkai saluran overhead diesel |
||

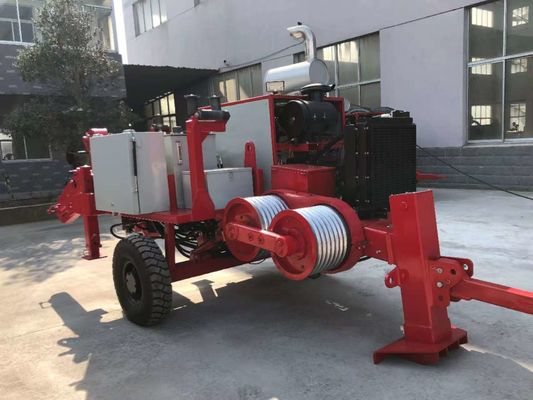

330KV Twin Bundle Conductor GL2x50 10T Peralatan Stringing Overhead Line
10 TonPeralatan Stringing Lini Udara Deskripsi:
10 Ton Tensioner Hydraulic Overhead Line Stringing Equipment digunakan untuk dua atau satu konduktor
stringing pada 330 KV atau 400 KV Transmission Overhead Line Proyek.
Ini dilengkapi dengan mesin diesel Deutz.
Ini cocok untuk mengikat konduktor ganda atau konduktor tunggal di jalur transmisi udara.
|
Tekanan intermiten maksimum 2x55/1x110kN
Tekanan terus-menerus maksimum 2x50/1x100kN
Kecepatan maksimum tarik 2,5 km/jam
Kecepatan maksimum 5km/jam
Tegangan pada kecepatan maksimum 2x25/1x50kN
Kekuatan tarik terbalik maksimum 2x45/1x90kN
Kecepatan tarik mundur maksimum 5km/jam
|
| Diesel 77kw ((103hp) Air sistem pendingin Sistem listrik 24V |
| Diameter roda banteng 1300/1500mm Diameter konduktor maksimum 40 mm Angka alur 2 × 5 Berat total 6250kg Dimensi keseluruhan 4400x2280x2550mm |
|
Mesin Cummins
Pompa hidraulik GermanRexroth/Danish Danfoss
Motor utama Jerman Rexroth/Perancis Leduc
Pengurangi kecepatan Jerman Rexrothn
Pengukur hidraulik Jerman WIKA
Pengendali operasi Jerman Rexroth
|
