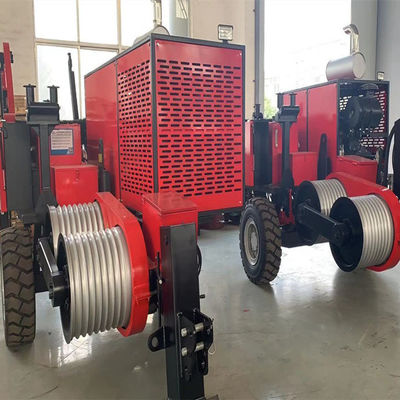

GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment

GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment
GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment
GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment

Gambar besar :  GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment

Detail produk:
Tempat asal: CINA
Nama merek: GALAXY
Sertifikasi: CE,ISO
Nomor model: GS90
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: negotiable
Kemasan rincian: Wadah
Waktu pengiriman: 15-25 hari
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 100 set per bulan
Kontak

GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment

Deskripsi
Mesin: Peralatan penarik kabel Ketegangan Max Intermitent: 90kn
Ketegangan Max Kontinu: 80kn Max Reverse Pulling Force: 80kn
Diameter roda banteng: 540mm Diameter Konduktor Max: 21mm
Nomor Konduktor: Kembar Mesin: Cummin Diesel
Pompa hidrolik: Rexroth Jerman Aplikasi: Saluran Listrik Overhead Transmisi
Menyoroti:

hydraulic puller for transmission lines

,

overhead line stringing equipment

,

GS90 hydraulic tensioner with warranty



GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment









Cable Tension Stringing Equipment

Our GS90 9Ton hydraulic puller machine match with our GL2x40 8Ton hydraulic tensioner machine ,

Two Bundled Conductors Stringing Equipments are used for overhead transmission line two

conductors or OPGW stringing. We can supply full set of hydraulic puller,hydraulic tensioner,

drum stands, stringing blocks, anti twisting pilot wire rope, running boards, come along clamps,

ratchet chain hoists, motorised winches, gin poles, hydraulic compressors, swivel joints,

socket pulling grips, fixed joints, joint protectors, etc.







GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment 0





GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment 1





Cable Tension Stringing Equipment  Performance :
Max intermittent tension 2x45/1x90kN
Max continuous tension 2x40/1x80kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 2x20/1x40kN
Max reverse pulling force 2×35/1x70kN
Max reverse pulling speed 5km/h


Cable Tension Stringing Equipment   Engine :
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V


Cable Tension Stringing Equipment Characteristics :
Bull-wheel diameter 1300/1500mm
Max conductor diameter 40mm
Groove number 2x5
Total weight 6250kg
Overall dimension 4400×2280×2550mm


Overhead Line Stringing Equipment Main Configuration :
Engine Cummins
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexrothn
Hydraulic meter German WIKA
Operating handle German Rexroth




Overhead Line Stringing Equipment Configuration

·Hydraulic dynamometers
·Hydraulic oil cooling system
·Digital speed and meter counter
·Hydraulic front stabilizer
·Grounding connection point
·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor



Overhead Line Stringing Equipment Configuration Hydraulic Transmission

·The machine can realize step less speed
·The machine is provided with tension presetting system



Overhead Line Stringing Equipment Configuration Additional Devices

·Lighting system for the trailer
·2 hydraulic rope/conductor clamp (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter


GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment 2
