1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing

1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing
1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing
1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing 1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing 1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing

Gambar besar :  1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing

Detail produk:
Tempat asal: CINA
Nama merek: GALAXY
Sertifikasi: CE,ISO
Nomor model: GL2X40/1X90
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: negotiable
Kemasan rincian: Wadah
Waktu pengiriman: 15-25 hari
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 100 set per bulan
Kontak

1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing

Deskripsi
Mesin: Peralatan Merangkai Ketegangan Kabel Ketegangan Max Intermitent: 2x45/1x90kN
Ketegangan Max Kontinu: 2x40/1x80kN Max Reverse Pulling Force: 2×35/1x70kN
Diameter roda banteng: 1300/1500mm Diameter Konduktor Max: 40mm
Nomor Konduktor: Kembar Mesin: Cummin Diesel
Pompa hidrolik: Rexroth Jerman Aplikasi: Saluran Listrik Overhead Transmisi
Menyoroti:

90kN hydraulic conductor puller

,

cable tensioner for power line

,

hydraulic stringing equipment with warranty



1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing









Cable Tension Stringing Equipment

Our GS90 9Ton hydraulic puller machine match with our GL2x40 8Ton hydraulic tensioner machine ,

Two Bundled Conductors Stringing Equipments are used for overhead transmission line two

conductors or OPGW stringing. We can supply full set of hydraulic puller,hydraulic tensioner,

drum stands, stringing blocks, anti twisting pilot wire rope, running boards, come along clamps,

ratchet chain hoists, motorised winches, gin poles, hydraulic compressors, swivel joints,

socket pulling grips, fixed joints, joint protectors, etc.

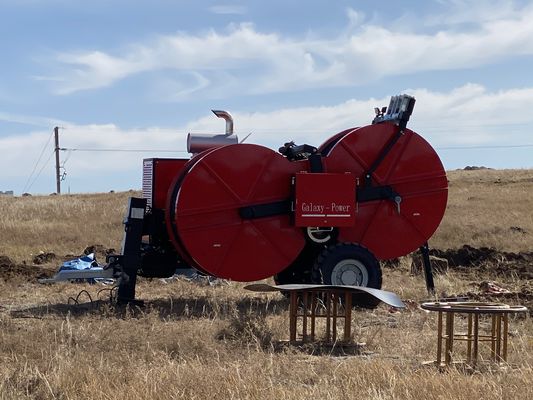

1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing 0





Cable Tension Stringing Equipment  Performance :
Max intermittent tension 2x45/1x90kN
Max continuous tension 2x40/1x80kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 2x20/1x40kN
Max reverse pulling force 2×35/1x70kN
Max reverse pulling speed 5km/h


Cable Tension Stringing Equipment   Engine :
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V


Cable Tension Stringing Equipment Characteristics :
Bull-wheel diameter 1300/1500mm
Max conductor diameter 40mm
Groove number 2x5
Total weight 6250kg
Overall dimension 4400×2280×2550mm


Overhead Line Stringing Equipment Main Configuration :
Engine Cummins
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexrothn
Hydraulic meter German WIKA
Operating handle German Rexroth




Overhead Line Stringing Equipment Configuration

·Hydraulic dynamometers
·Hydraulic oil cooling system
·Digital speed and meter counter
·Hydraulic front stabilizer
·Grounding connection point
·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor



Overhead Line Stringing Equipment Configuration Hydraulic Transmission

·The machine can realize step less speed
·The machine is provided with tension presetting system



Overhead Line Stringing Equipment Configuration Additional Devices

·Lighting system for the trailer
·2 hydraulic rope/conductor clamp (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter

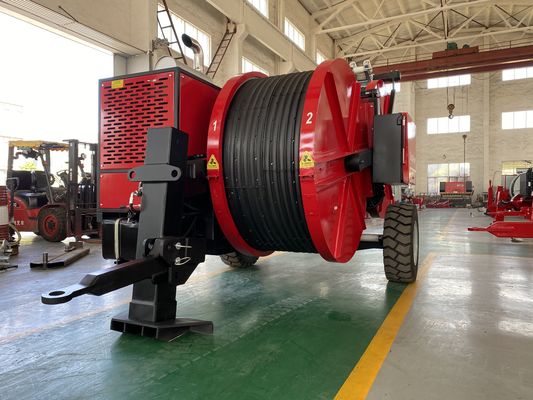

1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing 1
